6 dBi 4 inch Omnidirectional Small Form Factor Wi Fi Antenna with 4 RPSMA Plugs
Terrawave
220851
0 Items
Niet op voorraad
€ 513,63
Exclusief BTW
*6 dBi 4” Omnidirectional Small Form Factor Wi-Fi

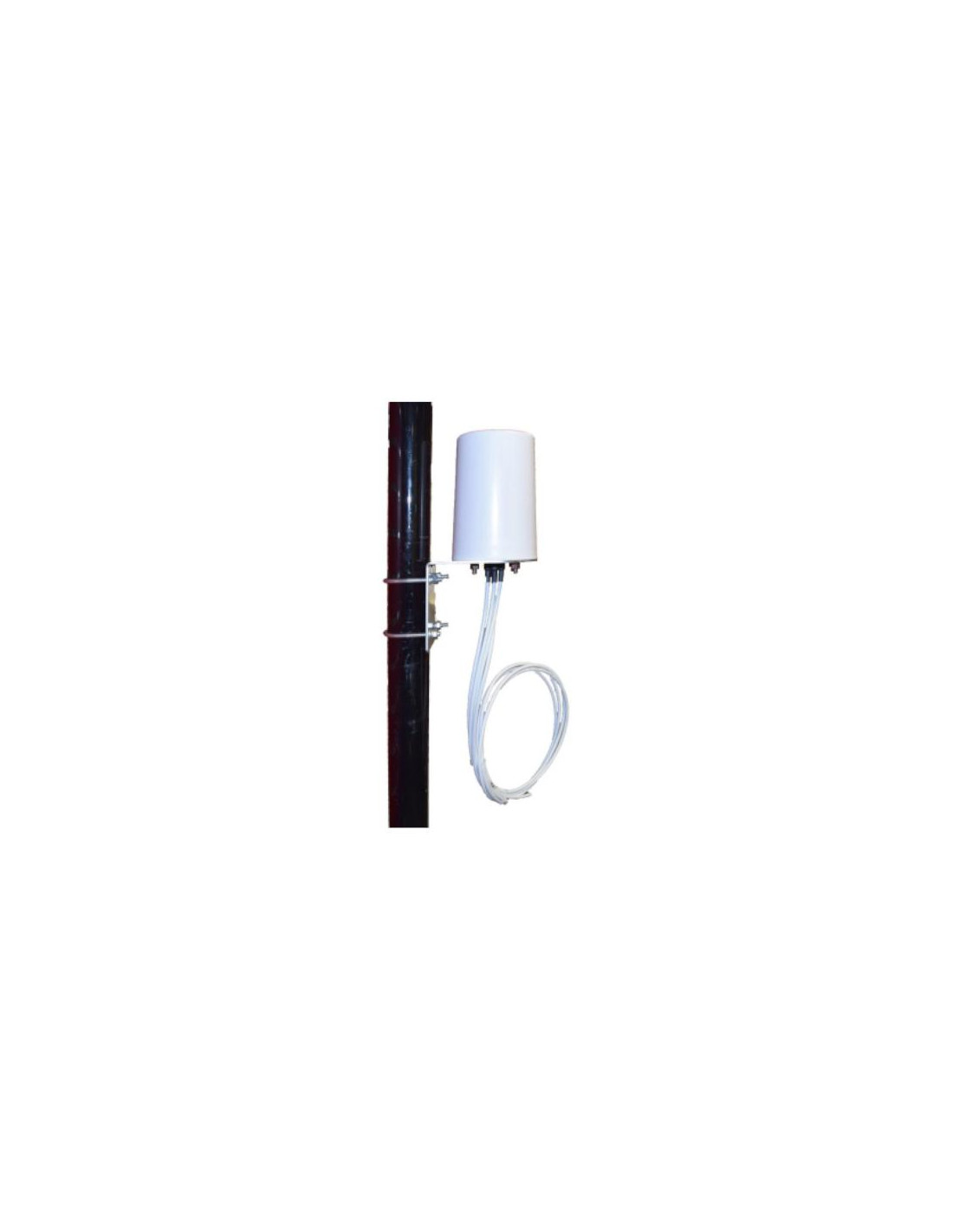

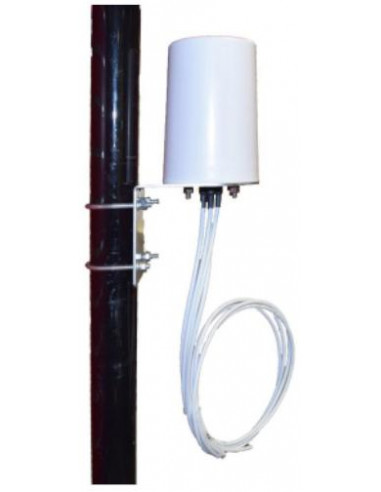

- Ventev’s TeraWave 2.4/5 GHz 6 dBi 4’‘ outdoor Multiple-Input and Multiple-Output (MIMO) Small Form Factor omnidirectional Wi-Fi antenna is designed to operate with any manufacturer’s 4-lead 802.11ac Waves I & II WLAN access points. The eantenna’s small size and clean appearance, combined with excellent performance, make it ideal for deployment ranging from large office spaces to warehouse or manufacturing environments where space is limited or visueal appeal is important. The 4 dual-band leads support all 802.11ac radio chains (2.4 or 5 GHz) and enable spatial multiplexing. An L-bracket with mounting hardware is included to support mast and/or wall mounting. specifications
- Model – M060060M1D43620C
- Frequency Range – 2400-2500 MHz / 4900 – 5850 MHz
- Bandwidth – 100 MHz – 950 MHz
- Gain – 5 dBi – 6dBi
- Vertical Beamwidth – 45° – 20°
- Horizontal Beamwidth – 360°
- VSWR <2.0
- Nominal Impedance – 50 Ohms
- Polarization – Vertical
- Max Power Rating – 10 Watts
- Dimensions (H X W) – 6’‘ (H) x 4’‘ (W)
- Weight – 3 lbs.
- Connector – RPSMA
- Number/Lenght/Type Pigtails – 4 × 36’‘RG-58
- Radome Color & Material – White ABS Plastic
- Operating Temperature – -40° F to +40°
- Ingress Protection – IP 54 Compliant
